Roc Tan's Aluminum Telescopic Poles
Lightweight, Durable, and Built to Perform

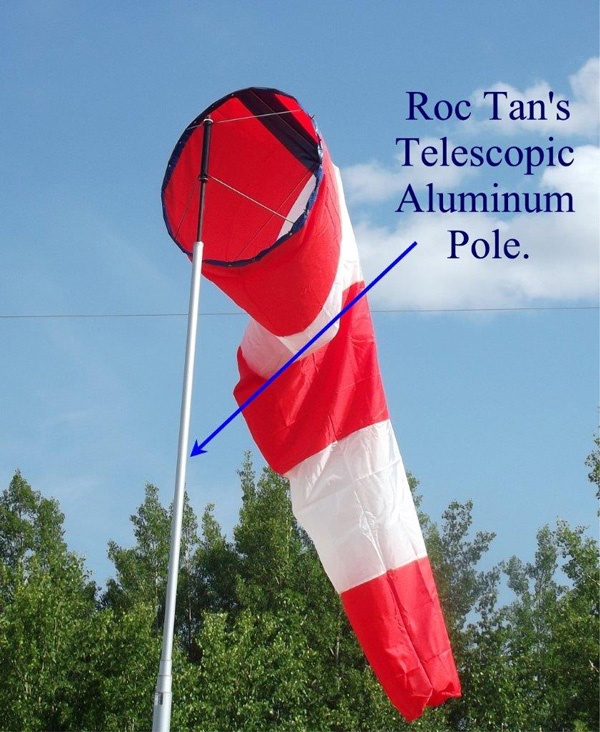

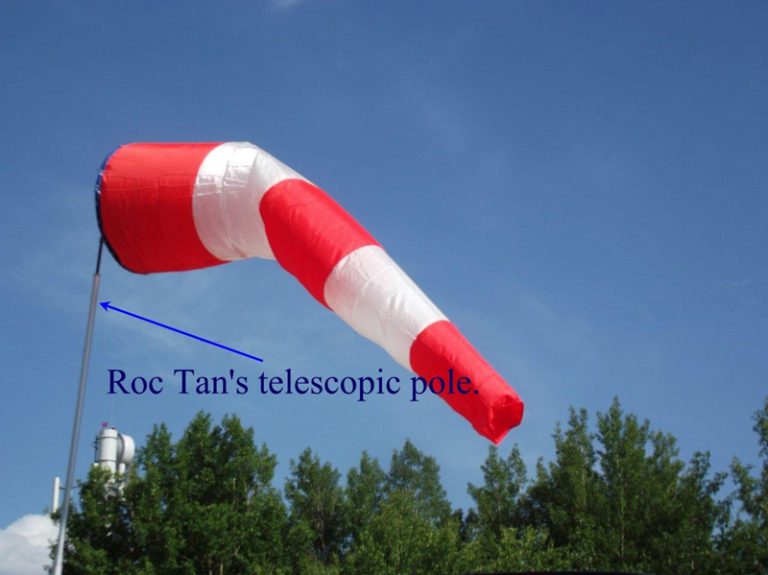

Roc Tan’s Aluminum Telescopic Poles are purpose-built for windsocks and flags in demanding outdoor environments. Engineered for high wind resilience, corrosion resistance, and effortless deployment, these poles are the ideal mounting solution for Roc Tan windsocks and indicators—on the ground, at events, or in industrial installations.
Featuring patented J-locking sleeves, these poles provide secure locking at each section, while allowing quick raising and lowering for maintenance. Whether you’re installing on a job site or a golf course, Roc Tan’s telescoping poles offer Canadian-built convenience and reliability.
Key Features
✅ Lightweight but strong
✅ Built from aircraft-grade anodized aluminum
✅ “J”-slot interlocking system for secure section locks
✅ Available in multiple heights and colours
✅ Compatible with Roc Tan hoops, swivel units, and flags
✅ Ground and portable mounting options available

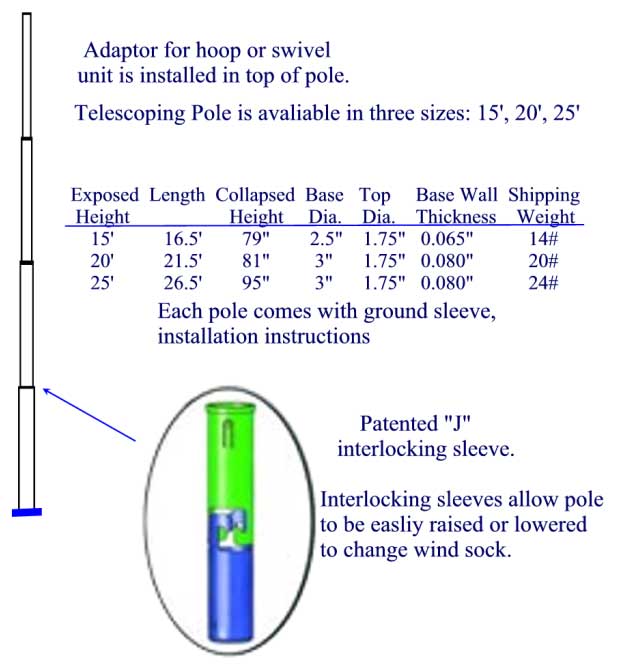

Size & Model Specifications
| Model | Extended Height | Collapsed Height | Base Dia. | Top Dia. | Wall Thickness | Weight |
|---|---|---|---|---|---|---|
| 15TAP | 15 ft | 79” (2.0 m) | 2.5” | 1.75” | 0.065” | 14 lbs |
| 20TAP | 20 ft | 81” (2.1 m) | 3” | 1.75” | 0.080” | 20 lbs |
| 25TAP | 25 ft | 95” (2.1 m) | 3” | 1.75” | 0.080” | 24 lbs |
Available in silver, bronze, or white anodized finishes.
The 25TAP in silver is Roc Tan’s most popular model for industrial and airfield use.
Materials & Construction
| Component | Material / Feature |
|---|---|
| Pole Sections | T6061 anodized aluminum (extruded) – corrosion- and UV-resistant |
| J-Slot Locks | Patented twist-lock design allows tool-free, secure section locking |
| External Hardware | High-grade Lexan polycarbonate – UV-stabilized, chemical resistant |
| Pole Adapter Bushing | UHMW polyethylene – included with Roc Tan hoops and swivel units |
| Flag Harness | Double swivel-ring system pre-installed for flag use (optional) |
Mounting Options
Roc Tan telescopic poles can be installed using the following anodized aluminum mounts:
| Mount Type | Best For | Material |
|---|---|---|
| Ground Sleeve | Permanent vertical installation | Anodized aluminum |
| Dock/Deck Mount | Wood decks, docks, boardwalks | Aluminum w/ flange base |
| Wall Mount | Building sides, vertical walls | Right-angle bracket |
| Hitch Mount | Portable use from vehicle receiver | 2” receiver compatible |
Mounts are corrosion-resistant, easy to install, and designed to match pole base diameter.
Installation Highlights
- Insert base of pole into selected mount (minimum 12” depth recommended for stability)
- If using with Roc Tan windsock hardware, install pole adapter bushing on top section
- Extend pole by unlocking J-slot sleeves from base to top
- Secure pole using twist lock until sleeve clicks into “J” notch
- Attach Roc Tan hoop or swivel unit using supplied hardware
- Mount windsock with UV ties; test swivel or sock rotation
Easy to raise/lower for maintenance or seasonal storage—no lifting equipment required.
Applications
🛩️ Helipads and Airfields – TP312 compliant systems
🏭 Industrial Sites – Quick deployment of wind indicators or site flags
⛳ Golf Courses – Flag or windsock use for wind awareness
🚤 Marinas – Wind awareness for boaters and docks
🏕️ Parks and Events – Temporary flagpoles or indicators
Roc Tan telescopic poles are built to perform in rain, snow, wind, and UV-heavy environments.
Canadian Craftsmanship
Every Roc Tan pole system is:
- Fabricated to aerospace-grade standards
- Designed and supported from Sylvan Lake, Alberta
- Compatible with Roc Tan hoops, windsocks, flags, and accessories
- Covered under our quality guarantee on fit and finish
Let’s Get Your Pole Setup Right
Need help selecting height or accessories? We’ll guide you.
📐 Provide your site specs—we’ll recommend the right pole and mount combo.
