Roc Tan's Swivel Units with Lights
Illuminate Your Windsock, Canadian Crafted
When visibility at night or in low-light conditions is critical, Roc Tan’s Swivel Units with Integrated Sock Lights deliver. Combining our precision-engineered swivel mechanisms with a high-output LED fixture, these units ensure your windsock remains a reliable wind indicator and beacon of safety—all manufactured in Canada.
Perfect for airports, refineries, marinas, and any site requiring 24/7 wind monitoring.
Lighting Features
- High-Intensity Output: 8,000 lumens of 5,000K daylight-balanced illumination
- Energy Efficient: 100W LED array draws only 0.9A at 120VAC
- Rugged Durability: IP65-rated fixture protects against dust and low-pressure water jets
- Long Lifespan: 30,000-hour service rating; minimal maintenance
- Rotational Mount: Light rotates with the windsock, maintaining consistent illumination

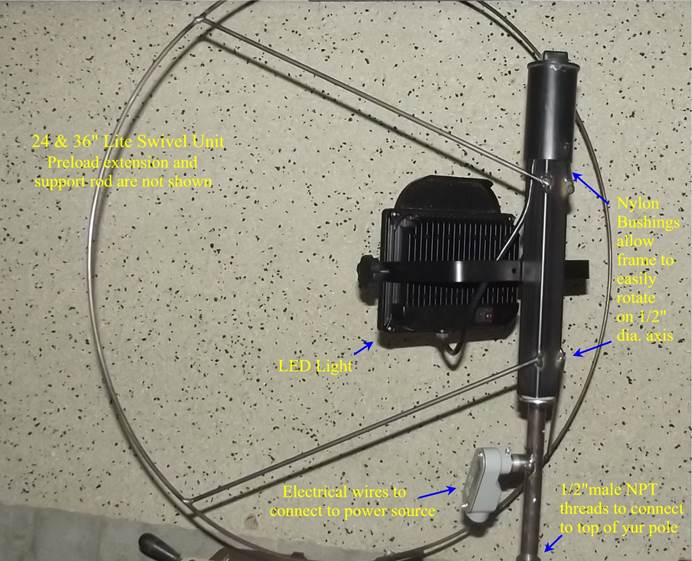

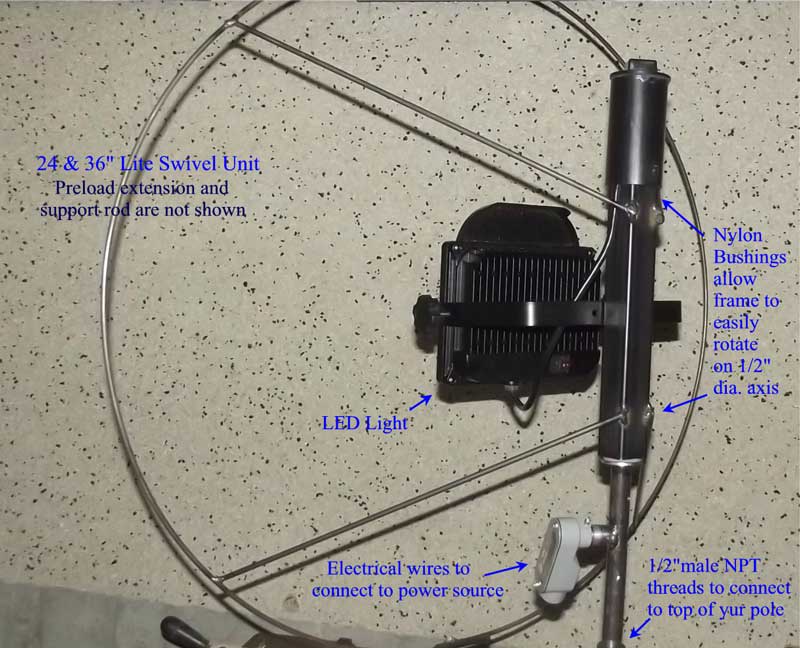

Assembly Components
- Hoop & Support Rods – Carbon steel, precision-formed
- Preload & Support – Keep windsock open, prevent wrap-around
- Base Housing with Bushings – UHMW polyethylene self-lubricating bearings
- LED Sock Light Module – Integrated 120VAC LED fixture with glass lens and aluminum heatsink
- Conduit Body – Cast aluminum for secure electrical connection
- Electrical Hardware – Weatherproof wiring, strain relief, and mounting fasteners
Product Models
| Model | Hoop Diameter | Mount Thread | LED Spec |
|---|---|---|---|
| 18SU-L | 18” | ½” MNPT | 8,000 lm @ 5,000K |
| 24SU-L | 24” | ½” MNPT | 8,000 lm @ 5,000K |
| 36SU-L | 36” | ½” MNPT | 8,000 lm @ 5,000K |
SU-L = Swivel Unit with LED Light. All units operate from 120VAC circuits.
Technical Specifications
| Feature | Details |
|---|---|
| LED Power & Current | 100W, 0.9A @ 120VAC |
| Luminous Flux | 8,000 lumens |
| Color Temperature | 5,000K daylight balanced |
| Ingress Protection | IP65 (dust-tight; water jets) |
| LED Lifespan | 30,000 hours |
| Operating Temp Range | -40°C to +60°C |
| Mount Connection | ½” Male NPT |
| Housing Material | Cast aluminum body with glass lens and stainless hardware |
| Bushing Material | UHMW polyethylene |
Installation & Wiring
- Mount Swivel to Pole
- Screw swivel’s ½” MNPT thread into the pole’s female NPT fitting.
- Assemble Preload System
- Insert preload rod and support; secure with cotter pin.
- Wire the LED Module
- Run 120VAC feed through conduit body; connect using supplied weatherproof connectors.
- Seal & Test
- Tighten conduit cover; apply sealant if necessary.
- Power on and verify light rotation and brightness.
Electrical work should be performed by qualified personnel according to local codes.
Key Benefits
- Continuous Visibility: Illuminate windsocks for nightly operations or poor-light conditions.
- Integrated Rotation: Light turns with the sock, ensuring even illumination on all sides.
- Low Maintenance: Durable LED and IP65 rating reduce service calls.
- Canadian Quality: Engineered and assembled in Alberta, tested to perform in extreme climates.
Ideal Use Cases
- Airports & Heliports – Night-time wind indication for safe landings and takeoffs
- Industrial Facilities – 24/7 monitoring in refineries, chemical plants, and storage yards
- Marinas & Ports – Safe navigation cues after dark
- Emergency & Hazard Zones – Enhanced visibility for first responders
Illuminate Your Site
Ensure your windsock guidance never dims.
⚡ Provide your swivel size and we’ll handle the lighting integration.
